EDI:: how it works...

As said earlier EDI is transfer of data between 2 systems.

The common types of EDI standards,

ANSI X12 is the US standard (3040, 4040)
UCS is a standard in grocery companies.
TRADACOMS is a standard in UK retail Industry.

EDIFACT is the international EDI standard (used usually outside of North America).
ODETTE is the standard used in European Automobile Industry.

The following schematic representations show how EDI works between customer, vendor and 3rd party.

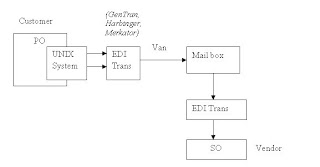

The first one is an overview, a very basic representation of EDI inside an organization

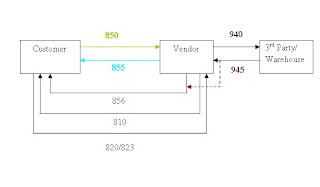

The second one shows in detail of how the EDI works


Legend:

EDI
X12 template
Description
Inbound/
Outbound
Message
Type




850
Purchase Order
outbound
ORDERS
855
PO Acknowledgement
inbound
ORDRSP
940
Warehouse Shipping
Order
outbound
DESADV
945
Warehouse Shipping
Advice
inbound
SDPICK
856
Advance Shipping
Notification (ASN)
inbound
DESADV
810
Invoice
inbound
INVOIC
820/823
Lock Box/EFT
outbound
LOCKBX
